Create a gMSA for Use With SharpHound Community Edition

This page describes how to configure and run the SharpHound Community Edition collection tool using an Active Directory gMSA.

Overview of gMSAs

Group Managed Service Accounts (gMSA) are managed domain accounts that provide automatic password management, simplified service principal name (SPN) management, and the ability to delegate the management to other objects.

Detailed software requirements from Microsoft are available here.

Microsoft gMSA documentation is available here.

Create a gMSA account

To create a gMSA account, start by preparing the domain.

1. Log into a domain controller within the domain you want to create a gMSA.

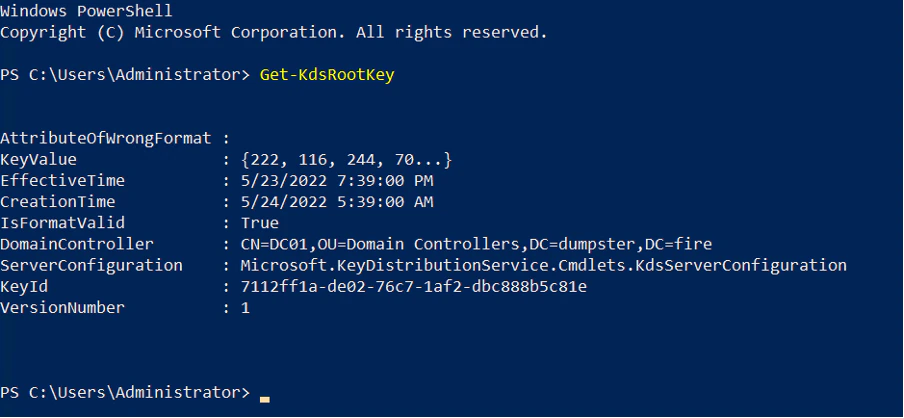

2. To validate whether the domain has a KDS Root Key configured, run:

   Get-KdsRootKey


   If there’s no result returned, the KDS Root Key has not been configured in the domain. Continue on to step 3.

   If there is a result returned, the KDS Root Key has already been configured in the domain. Skip step 3 and move on to Create the gMSA and password read group.

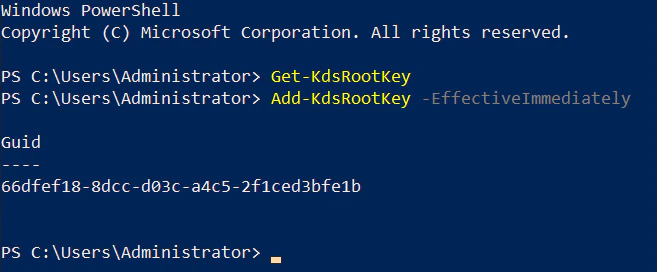

3. Create the KDS Root Key.

   For a production environment, run:

   Add-KdsRootKey -EffectiveImmediately



   For a test environment, make the key available for immediate use by running:

   Add-KdsRootKey -EffectiveTime ((Get-Date).AddHours(-10))


Create the gMSA and password read group

Perform these steps from/against a writeable Domain Controller.

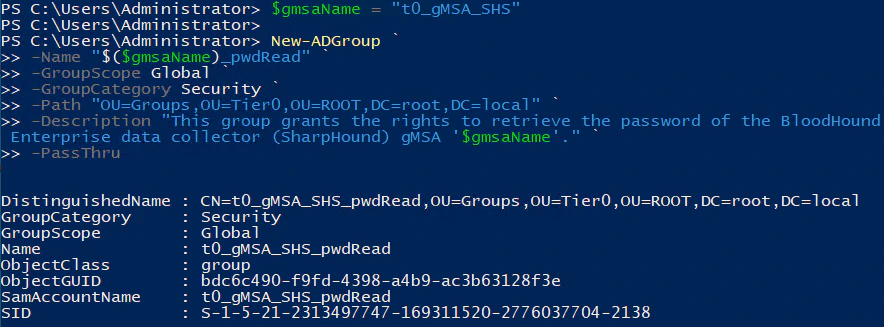

1. Create a gMSA password read group for computers that should have access to the gMSA password.

   Browse to the desired location in Users and Computers and create the group. Alternatively, use this template to create the group using PowerShell:

    $gmsaName = "t0_gMSA_SHS" # Name of the gMSA
    $pwdReadOUDN = "<DISGINGUISHED_NAME>" # Distinguished Name of OU to create the password read group in

    New-ADGroup `
    -Name "$($gmsaName)_pwdRead" `
    -GroupScope Global `
    -GroupCategory Security `
    -Path $pwdReadOUDN `
    -Description "This group grants the rights to retrieve the password of the BloodHound data collector (SharpHound) gMSA '$gmsaName'." `
    -PassThru

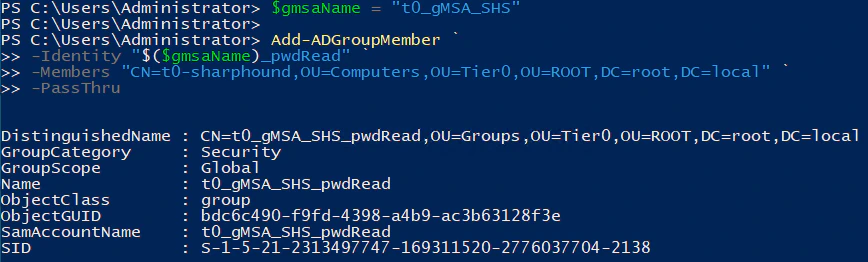

2. Add the SharpHound server that performs the Sharphound collections as a member of the gMSA password read group. This allows it to access the password of the gMSA and run the service.

   Add the computer to the group in Users and Computers. Alternatively, use this template to add group membership using PowerShell:

       $gmsaName = "t0_gMSA_SHS" # Name of the gMSA
       $shServerDN = "<DISGINGUISHED_NAME>" # Distinguished Name of the SharpHound Enterprise server

       Add-ADGroupMember `
       -Identity "$($gmsaName)_pwdRead" `
       -Members $shServerDN `
       -PassThru



   When viewing the changes on a Windows server with the GUI enabled, you can see the OUs and the t0_gMSA_SHS_pwdRead group you created.

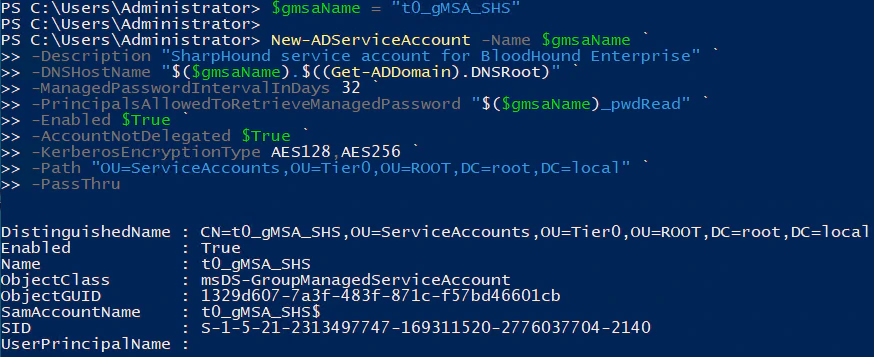

3. Create the gMSA and allow the password read group to retrieve its password.

   On a Domain Controller, use this template to create the gMSA and set the retrieve right using PowerShell:

       $gmsaName = "t0_gMSA_SHS" # Name of the gMSA
       $gmsaOUDN = "<DISGINGUISHED_NAME>" # Distinguished Name of OU to create the gMSA in

       New-ADServiceAccount -Name $gmsaName `
       -Description "SharpHound service account for BloodHound" `
       -DNSHostName "$($gmsaName).$((Get-ADDomain).DNSRoot)" `
       -ManagedPasswordIntervalInDays 32 `
       -PrincipalsAllowedToRetrieveManagedPassword "$($gmsaName)_pwdRead" `
       -Enabled $True `
       -AccountNotDelegated $True `
       -KerberosEncryptionType AES128,AES256 `
       -Path $gmsaOUDN `
       -PassThru

   If you receive the error "_New-ADServiceAccount : Key does not exist_", try again in 10 hours. This allows all Domain Controllers to converge AD replication of the KDS root key.


Prepare the SharpHound server

1. Restart the SharpHound Enterprise server so that the server’s membership of the `pwdRead` group takes effect.
2. Grant the gMSA the “Log on as a service” User Rights Assignment on the SharpHound server. This can be done through `secpol.msc` or policy deployment methods like a GPO.
3. (Optional) Test that the SharpHound server can retrieve the gMSA password. See Test the gMSA.

Test the gMSA

Optionally test the gMSA server to make sure that the gMSA is working.

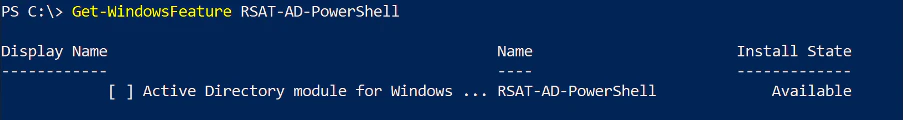

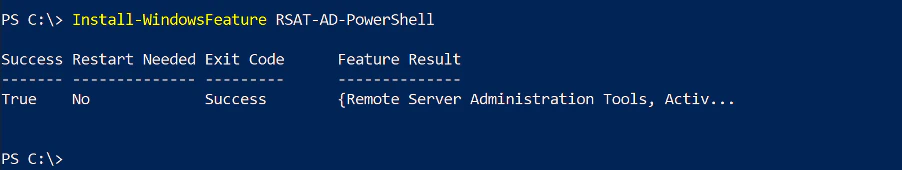

1. Check the status of the RSAT PowerShell module. On the SharpHound Enterprise server, open a PowerShell as an Administrator and run:

   Get-WindowsCapability -Name RSAT*



   If the Install State shows “Installed”, skip to step 2, otherwise run:

   Get-WindowsCapability -Name RSAT* -Online | Add-WindowsCapability -Online



2. In the elevated PowerShell, test that the SharpHound server can retrieve the gMSA password by running:

       $gmsaName = "t0_gMSA_SHS" # Name of the gMSA

       Test-ADServiceAccount -Identity $gmsaName



The test is successful if the command responds with True.

Configure User Rights

As SharpHound is launched with a PowerShell script instead of running as a service, you need to grant the gMSA account the Log on as a batch job User Right instead of the Log on as Service User Right. Do this with the Local Security Policy or Group Policy.

Configure user permissions

The Active Directory details collected by SharpHound depend on the permissions that the user running SharpHound has within the Domain.

A regular, non-privileged user can run SharpHound and collect a significant amount of information from Active Directory, but some local system data requires additional permissions on the in-scope computers. See SharpHound Data and Permissions for an overview.

Grant collection permissions directly to the SharpHound gMSA account. There are two recommended paths:

• Method 1: Explicitly make the SharpHound gMSA account a member of the local Administrators group on in-scope computers.
• Method 2: Grant the SharpHound gMSA account the least-privilege permission set described in Least-Privileged Collection.

The SharpHound collection service account does not require Domain Admin membership. Domain Admins receives local administrator access on domain-joined computers by default, but that is implicit access and the Domain Admins membership gives many other unnecessary permissions. Use explicit local administrator assignment or least-privilege delegation instead.

Implement gMSA account protections

After granting collection permissions, consider additional protections for the gMSA account. We highly recommend membership in the Protected Users group.

See SharpHound Enterprise Service Hardening to learn about protections you can implement to prevent the SharpHound gMSA account from being compromised and leveraged by an attacker.

Create a SharpHound PowerShell script to run as a scheduled task

Create a PowerShell script to run SharpHound with a scheduled task.

Create a script

To create the script on the server where the scheduled task should run:

1. Create these three directories:

   • C:\Program Files\SharpHound
   • C:\Program Files\SharpHound\Results, and grant the gMSA service account Modify permissions on files within.
   • C:\Program Files\SharpHound\Logs, and grant the gMSA service account Modify permissions on files within.

   Run the code block below, or create the directories and ACLs manually. The code block creates C:\Program Files\SharpHound implicitly as a parent of the children.

   $account = "$($env:USERDOMAIN)\t0_gMSA_SHS$"
   $paths = @(
       "C:\Program Files\SharpHound\Results",
       "C:\Program Files\SharpHound\Logs"
   )

   foreach ($path in $paths) {
       New-Item $path -ItemType Directory -Force
       $acl = Get-Acl -Path $path
       $rule = New-Object System.Security.AccessControl.FileSystemAccessRule(
           $account,
           [System.Security.AccessControl.FileSystemRights]::Modify,
           [System.Security.AccessControl.InheritanceFlags]"ContainerInherit,ObjectInherit",
           [System.Security.AccessControl.PropagationFlags]::None,
           [System.Security.AccessControl.AccessControlType]::Allow
       )
       $acl.AddAccessRule($rule)
       Set-Acl -Path $path -AclObject $acl
   }


2. Copy the SharpHound CE executable to the C:\Program Files\SharpHound directory.

   The SharpHound CE executable may need to be allowlisted or transferred as a password-protected zip file so that Microsoft Defender doesn’t block it during the file transfer.

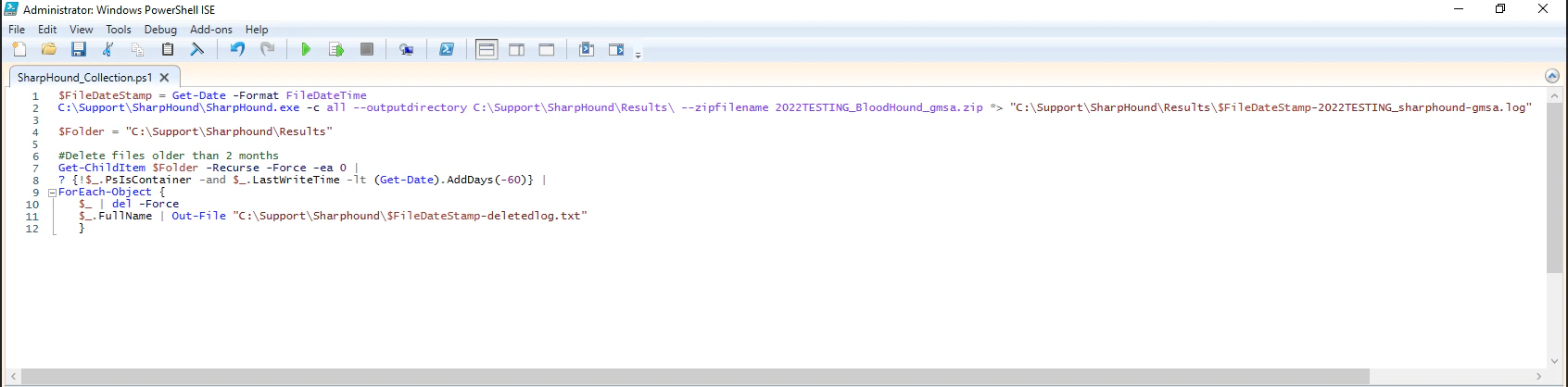

3. Create the PowerShell script C:\Program Files\SharpHound\SharpHound_Collection.ps1 with the contents from the code block below.

   The PowerShell script contains:

   • The relative path to the SharpHound executable
   • The command line arguments that you want to pass to SharpHound
   • Redirection of the console output to a log file
   • Deletion of results that are older than 2 months
   $Results = ".\Results"
   $Logs = ".\Logs"
   $FileDateStamp = Get-Date -Format FileDateTime

   & ".\SharpHound.exe" --collectionmethods all --outputdirectory $Results *> "$Logs\$FileDateStamp.log"

   #Delete results older than 2 months
   Get-ChildItem $Results -Recurse -Force -ea 0 |
   ? {!$_.PsIsContainer -and $_.LastWriteTime -lt (Get-Date).AddDays(-60)} |
   ForEach-Object {
       $_ | Remove-Item -Force
       $_.FullName | Out-File "$Logs\$FileDateStamp-deletedlog.txt"
   }

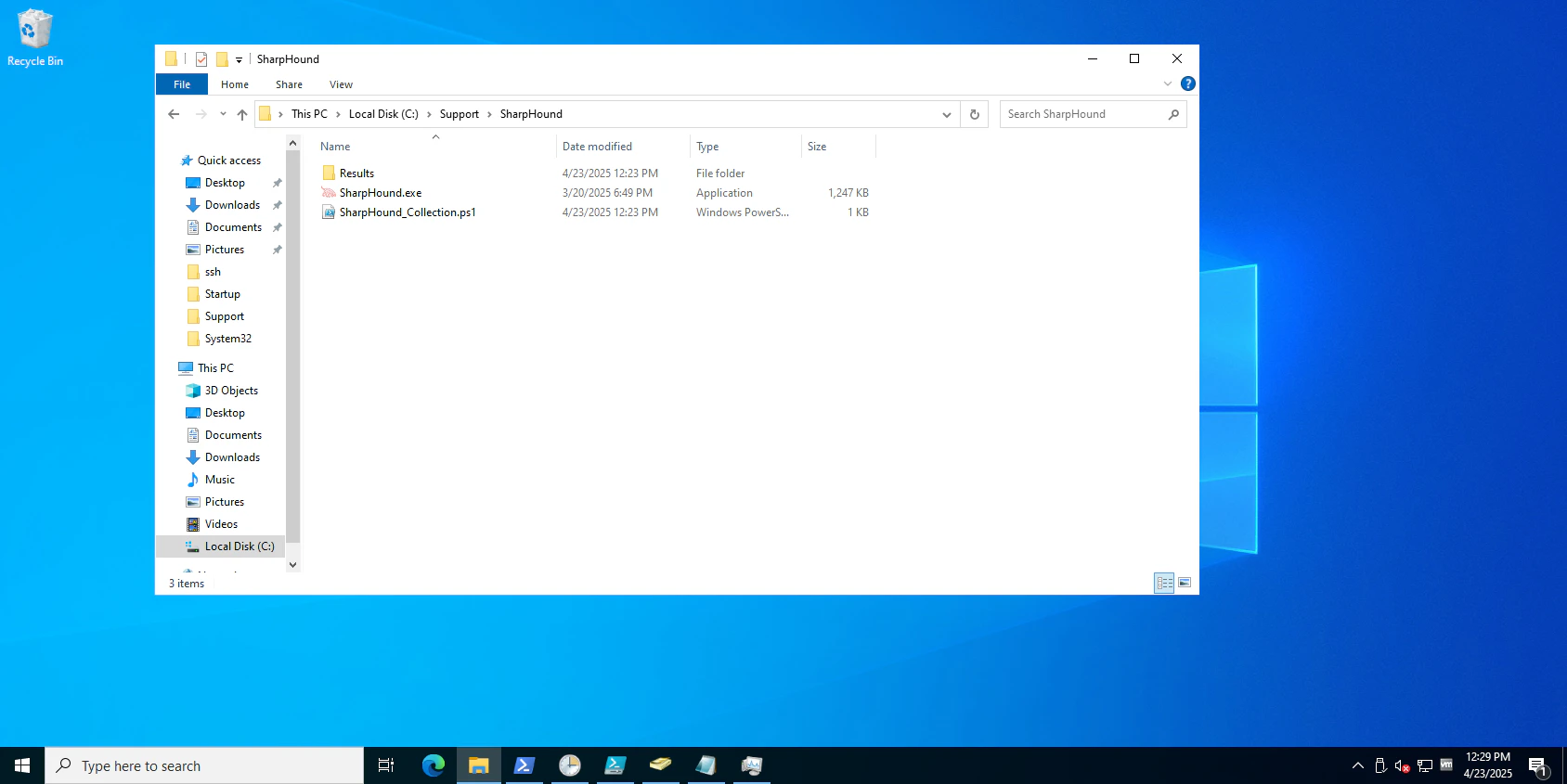

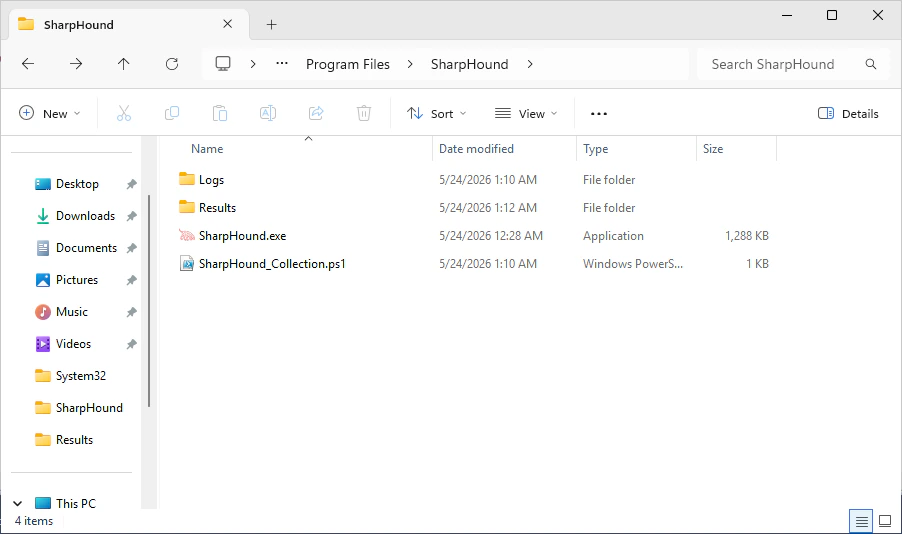

The resulting directory structure should resemble:

Create a scheduled task

To create the scheduled task, choose the PowerShell method or the GUI method. The PowerShell method is the easiest way to create the scheduled task.

To create the scheduled task with PowerShell:

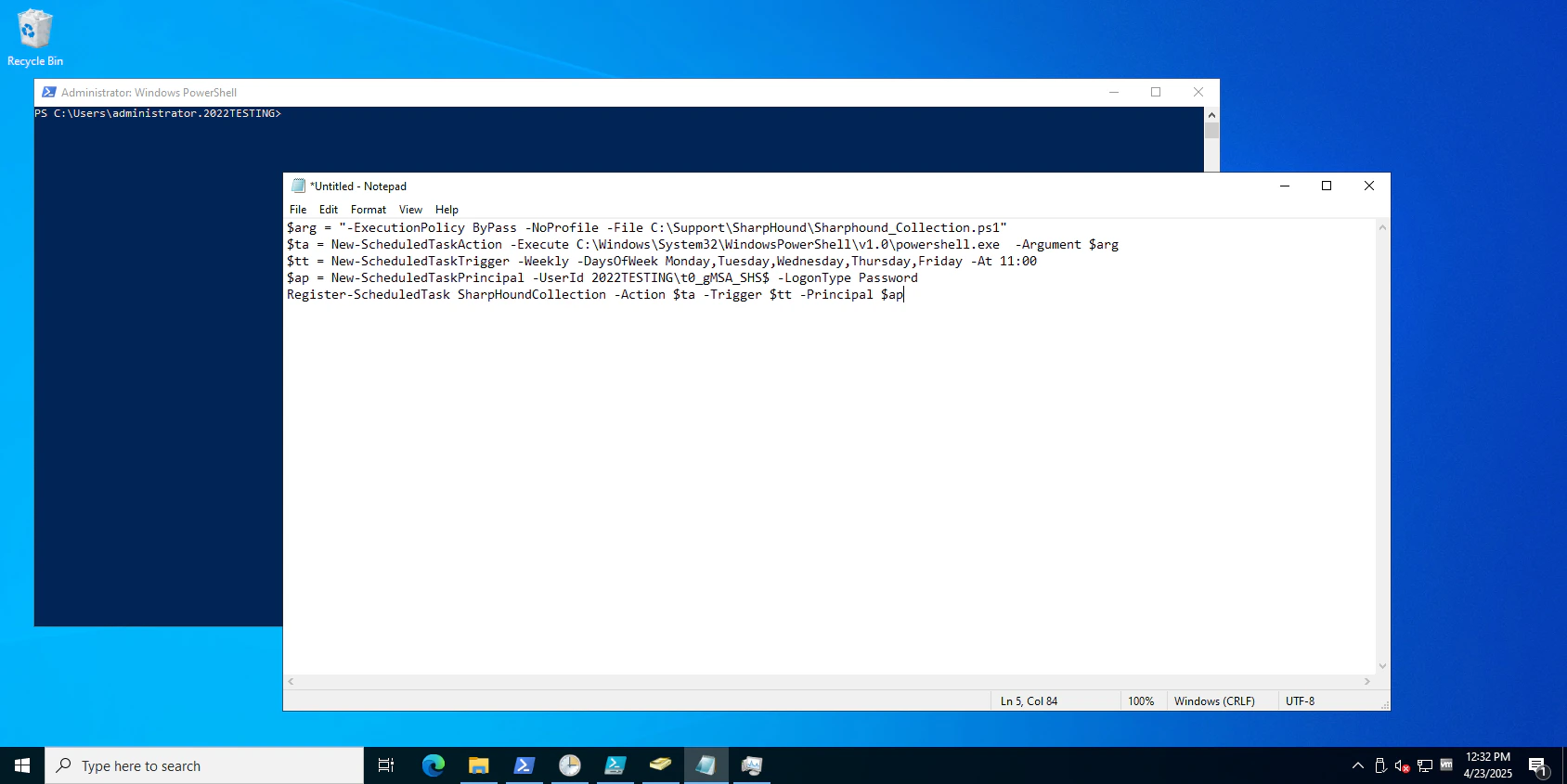

1. Run these PowerShell commands, modifying files names and domain names as necessary:

   $arg = '-ExecutionPolicy ByPass -NoProfile -File ".\SharpHound_Collection.ps1"'
   $ta = New-ScheduledTaskAction -Execute C:\Windows\System32\WindowsPowerShell\v1.0\powershell.exe -Argument $arg -WorkingDirectory "C:\Program Files\SharpHound"
   $tt = New-ScheduledTaskTrigger -At 9:00 -Weekly -DaysOfWeek Monday
   $ap = New-ScheduledTaskPrincipal -UserID "$($env:USERDOMAIN)\t0_gMSA_SHS$" -LogonType Password -RunLevel Highest
   Register-ScheduledTask SharpHoundCollection -Action $ta -Trigger $tt -Principal $ap

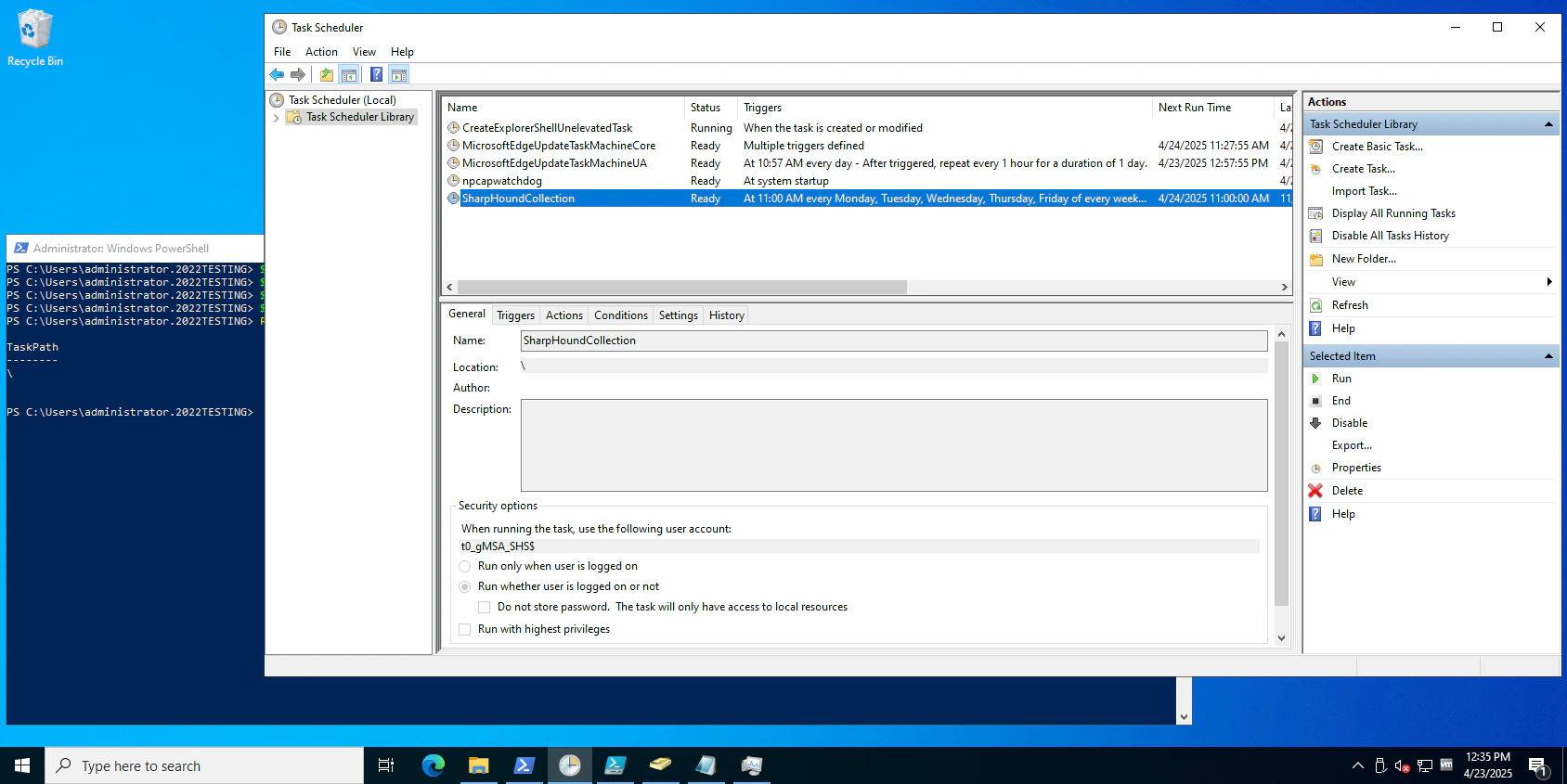

2. After refreshing the Scheduled Tasks MMC, you should see the newly created scheduled task that runs as the gMSA account.

To create the scheduled task with the GUI:

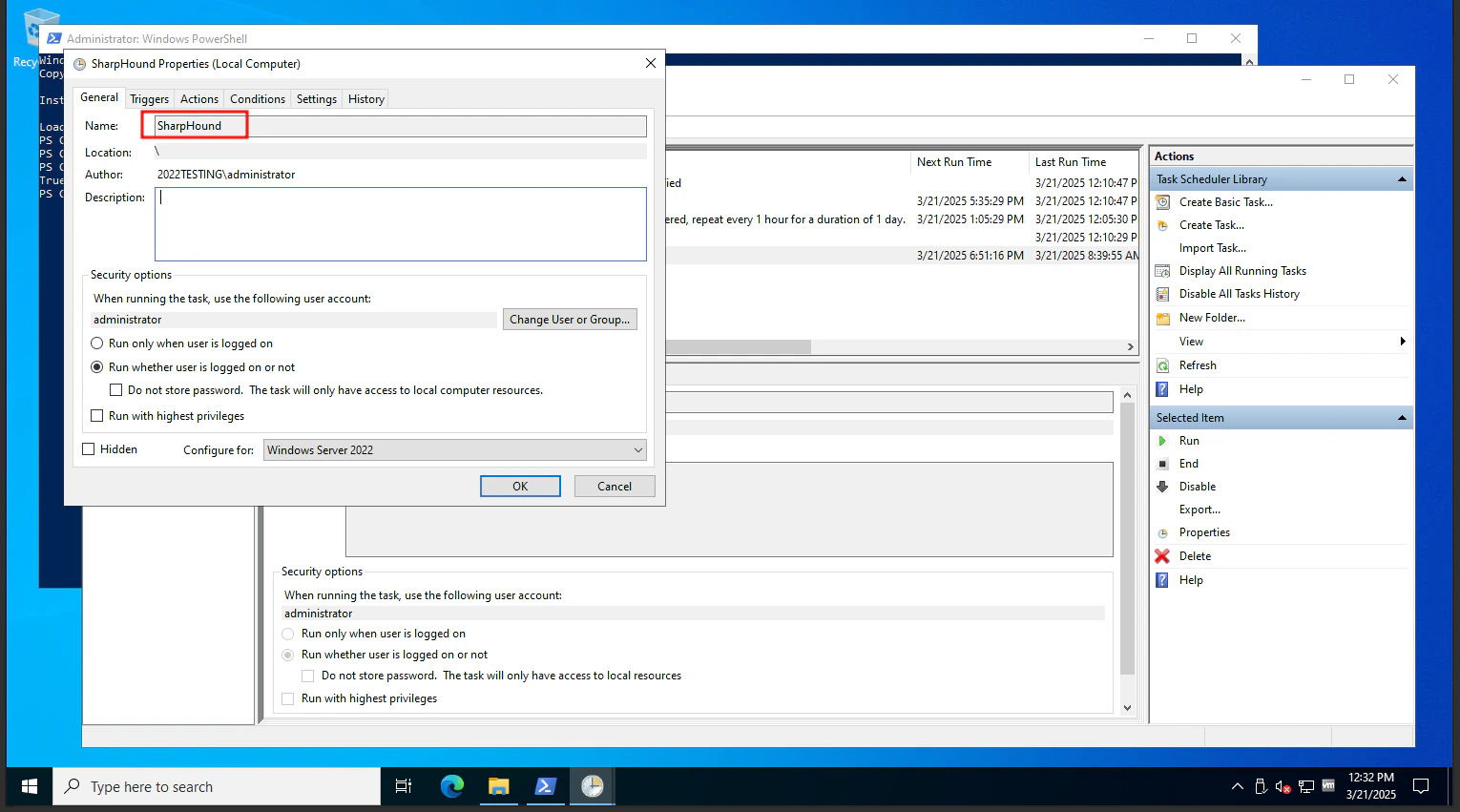

1. Open the Scheduled Tasks MSC on the SharpHound server and create a scheduled task. In the example shown below, the scheduled task name is SharpHound.



2. Configure the scheduled task to run on the desired schedule.

3. Configure the scheduled task with this Action:

   • Program / script: C:\Windows\System32\WindowsPowerShell\v1.0\powershell.exe
   • Arguments: -ExecutionPolicy ByPass -NoProfile -File ".\SharpHound_Collection.ps1"
   • Start in: C:\Program Files\SharpHound

4. Click OK on the Edit Action.

5. Leave the default run-account selection for now — you’ll change it to the gMSA in a later step.

6. Click OK on the scheduled task to complete the creation.

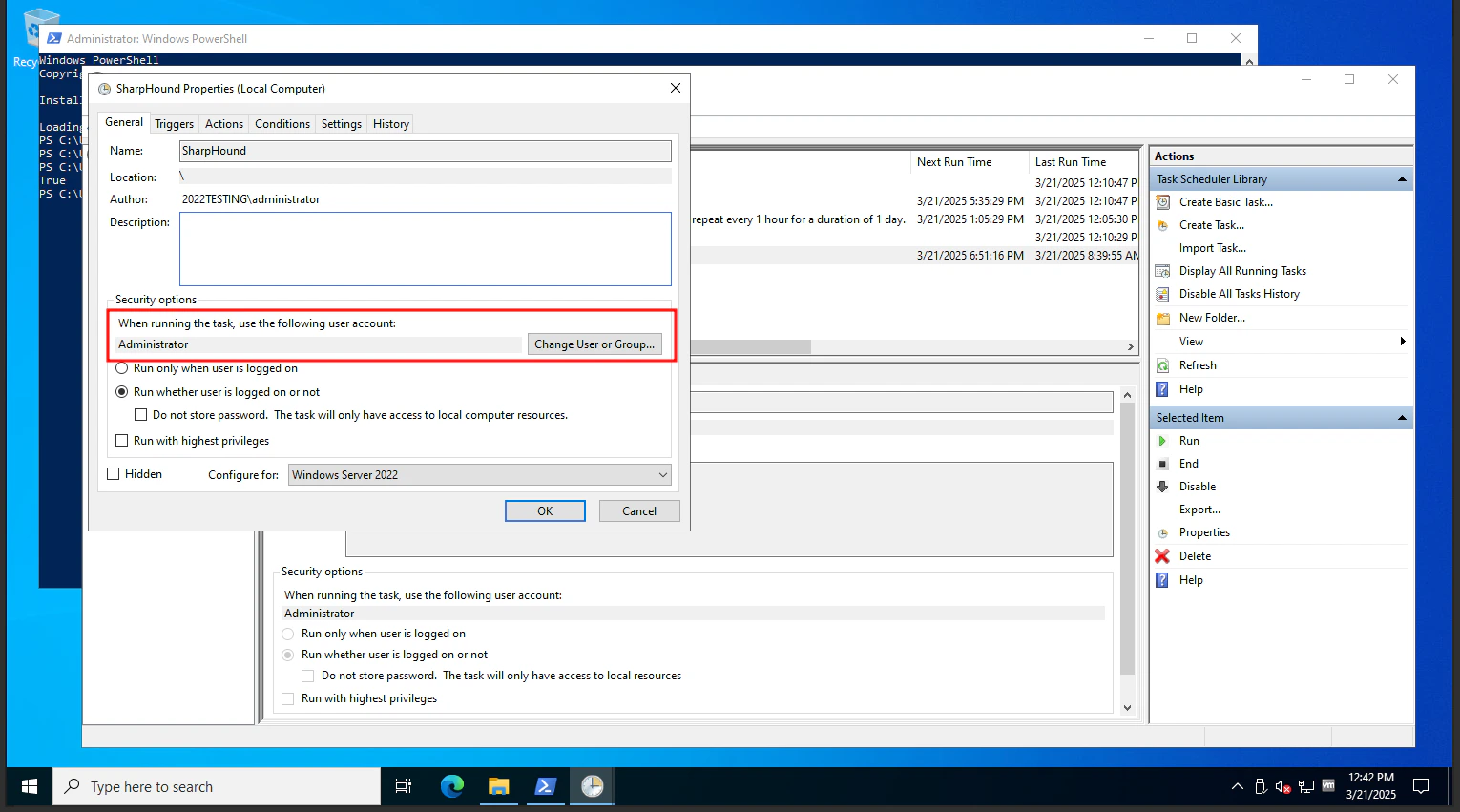

7. Provide the password for the standard user account when prompted and click OK. At this point you should see the scheduled task setup to run using the user account you previously configured.



8. Modify the scheduled task to run as the gMSA account with PowerShell:

   • Option A: schtasks

     schtasks /change /TN \SharpHound /RU "$($env:USERDOMAIN)\t0_gMSA_SHS$" /RP


   • Option B: New-ScheduledTaskPrincipal

     $principal = New-ScheduledTaskPrincipal -UserID "$($env:USERDOMAIN)\t0_gMSA_SHS$" -LogonType Password -RunLevel Highest
     Set-ScheduledTask -TaskName SharpHound -Principal $principal


9. You should see a message stating that command was successful. If you open the scheduled task you should see that the account it will run as is the gMSA account.

Test the SharpHound scheduled task

To test the scheduled task running as the gMSA account, right click on the scheduled task and click Run.

When completed, a zip file should appear in C:\Program Files\SharpHound\Results\, and a log file in C:\Program Files\SharpHound\Logs\.

---
